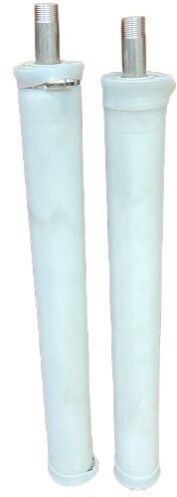

Silicon Fine Bubble Diffuser

Get a Price/Quote

MOQ : 100 Pieces

Silicon Fine Bubble Diffuser Specification

Usage & Applications
Sewage & Effluent Treatment Plants, Aquaculture, Aeration Tanks

Efficiency (%)
High (Oxygen Transfer Efficiency up to 35%-60%)

Feature
Fine bubble output, corrosion resistance, anti-clogging

Noise Level
Silent Operation (No noise produced by diffuser itself)

Technology
Fine Bubble Diffusion

Flow Rate
Diffuser type-dependent (typically 1-8 m3/hr/unit)

Drive Type
Not Applicable (Static component)

Power Source
Air Blower (external)

Automatic Grade
Manual

Material
Silicone rubber (membrane), ABS/PP (body/plate)

Product Type
Fine Bubble Diffuser

Capacity
Designed for use in aeration systems of various tank sizes

Installation Type
Submersible/Bottom Mounted

Temperature Range
0C to 80C

Standard Color
White/Gray (Membrane)

Connector Size
3/4" or as specified

Operating Pressure
0.15 - 0.4 kg/cm2

Open Area Ratio
Above 10%

Bubble Diameter
20-100 microns (fine bubble)

Size/Shape
Typically 9 inch or 12 inch disc/dome

Service Life
2-5 years (depending on application and maintenance)

Membrane Pore Size
0.8 - 2 microns

Silicon Fine Bubble Diffuser Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

About Silicon Fine Bubble Diffuser

Offer unbeatable value with our famed Silicon Fine Bubble Diffuser-engineered for top-tier aeration performance! Pick yours today for instant savings on efficient wastewater and aquaculture solutions. With an astonishing membrane pore size of 0.8-2 microns and a sturdy ABS/PP build, it offers superior corrosion resistance and silent, high-efficiency oxygen transfer (up to 60%). Available as a 9-inch or 12-inch disc, this manual, submersible device is tailored for versatile installations-delivering reliable service life of 2-5 years under varied applications.

Silicon Fine Bubble Diffuser: Area of Application & Usage

This top-tier silicon fine bubble diffuser is widely acclaimed for its use in sewage and effluent treatment plants, aeration tanks, and aquaculture systems. Designed as an efficient aeration device, it provides fine bubble diffusion for enhanced oxygen transfer. Known for being both anti-clogging and highly durable, it is perfect for submersible and bottom-mounted applications, contributing to improved water quality and operational efficiency across several sectors.

Silicon Fine Bubble Diffuser: Export, Samples & Supply Ability

Sample units of our silicon fine bubble diffuser can be dispatched quickly to address customer evaluation needs. We ensure seamless goods transport and handover to key export markets across Asia, the Middle East, and Africa. With robust supply capabilities, repeat orders are fulfilled efficiently, and large consignments are managed reliably through well-established networks-guaranteeing timely delivery, wherever your project is located.

FAQ's of Silicon Fine Bubble Diffuser:

Q: How does the silicon fine bubble diffuser improve aeration efficiency?

A: The silicone membrane's fine pores, sized 0.8 to 2 microns, generate extremely small bubbles for increased oxygen transfer efficiency (up to 60%), making it highly effective in enhancing aeration in treatment tanks and aquaculture.

Q: What materials are used in the construction of the diffuser?

A: The diffuser features a silicone rubber membrane and a body/plate manufactured from robust ABS/PP, offering excellent corrosion resistance and longevity even in challenging environments.

Q: Where can this fine bubble diffuser be installed?

A: It is primarily used in sewage & effluent treatment plants, aquaculture facilities, and aeration tanks. Its submersible/bottom-mounted design suits a variety of tank sizes and configurations.

Q: What is the typical lifespan and maintenance requirement for this product?

A: With proper maintenance and application, the diffuser provides a dependable service life ranging from 2 to 5 years, ensuring long-term performance and minimal replacement needs.

Q: What benefits does the silent operation offer to users?

A: The diffuser itself produces no operational noise, promoting a quieter working environment, which is especially beneficial in indoor or noise-sensitive installations.

Q: How can I request a sample or secure bulk supply for my project?

A: You can request a sample for evaluation, and bulk orders are handled efficiently with goods dispatched and handed over through reliable transport channels to your specified location.
